Artillery Projectile Lines
105mm / 122mm / 130mm / 152mm and 155mm
Artillery Projectiles
105mm / 122mm / 130mm / 152mm and 155mm artillery ammunition have a high degree of compatibility with standard NATO and WARSAW artillery systems, making them exceptional ammunition for training and immediate combat use.
Our Strategic Planning and Execution service offers a thorough approach to formulating and implementing business goals. We begin with an in-depth analysis of your business and market to identify opportunities and challenges. From there, we work with you to define clear, actionable objectives and develop a detailed.

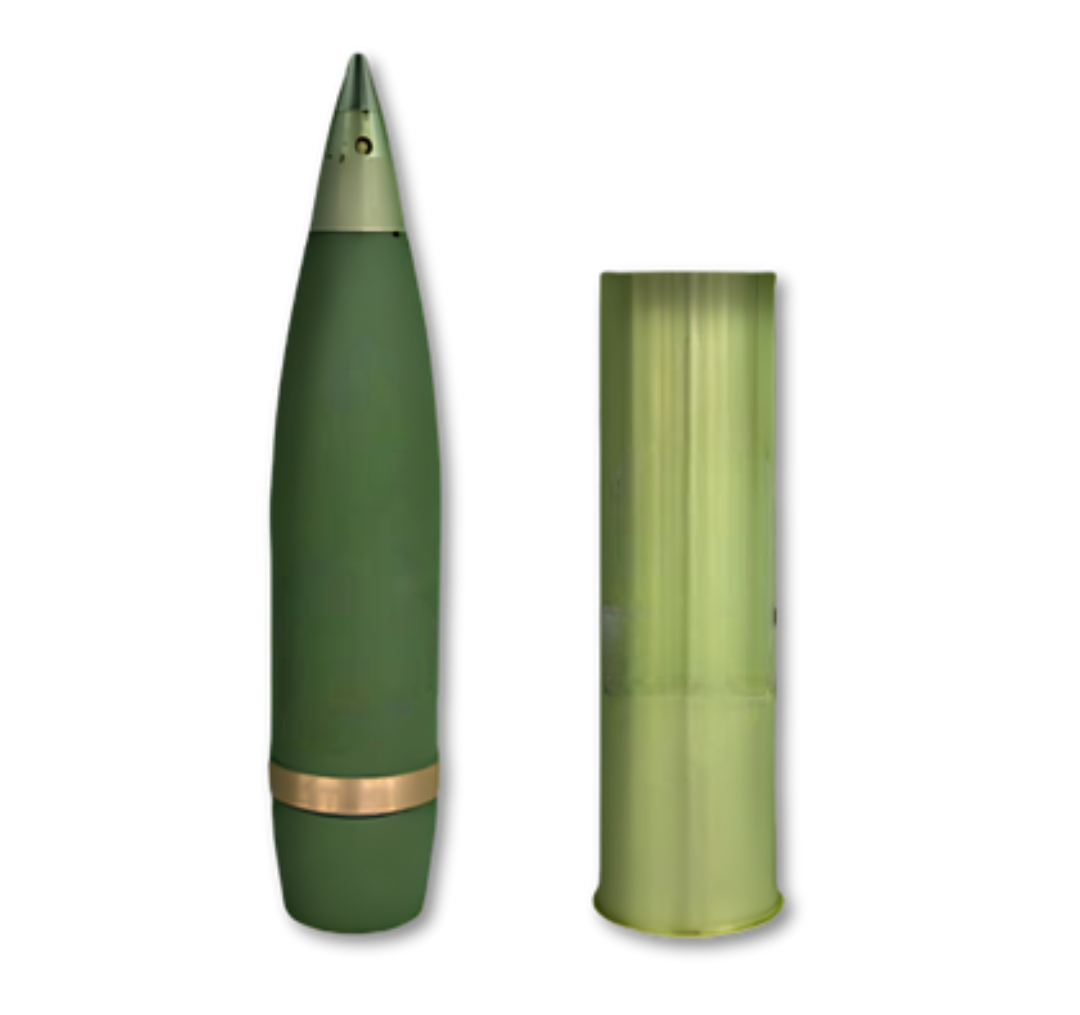

105mm HE
The round 105 mm is separate loaded, with a high-explosive projectile M1 and propellant charge M2. It is intended for the destruction of personnel, light fortifications, unarmored and lightly armored vehicles. The projectile is filled with TNT explosive. The full propellant charge M2 is in a brass cartridge case.
- Calibre (mm): 105
- Muzzle velocity (m/s): 491 for M56 / 472 for M2A1
- Mean maximum pressure of powder gases (bar): < 2305
- Maximum range (m): 11600 for M56 / 11200 for M2A1
- Projectile length, with fuze (mm): 496
- Projectile mass, tabular (kg): 14,9
- Explosive charge mass (kg): 2,11
- Cartridge case length (mm): 371,8
- Propellant charge mass (kg): 1,3
- Operating temperature (C): -30 to +50

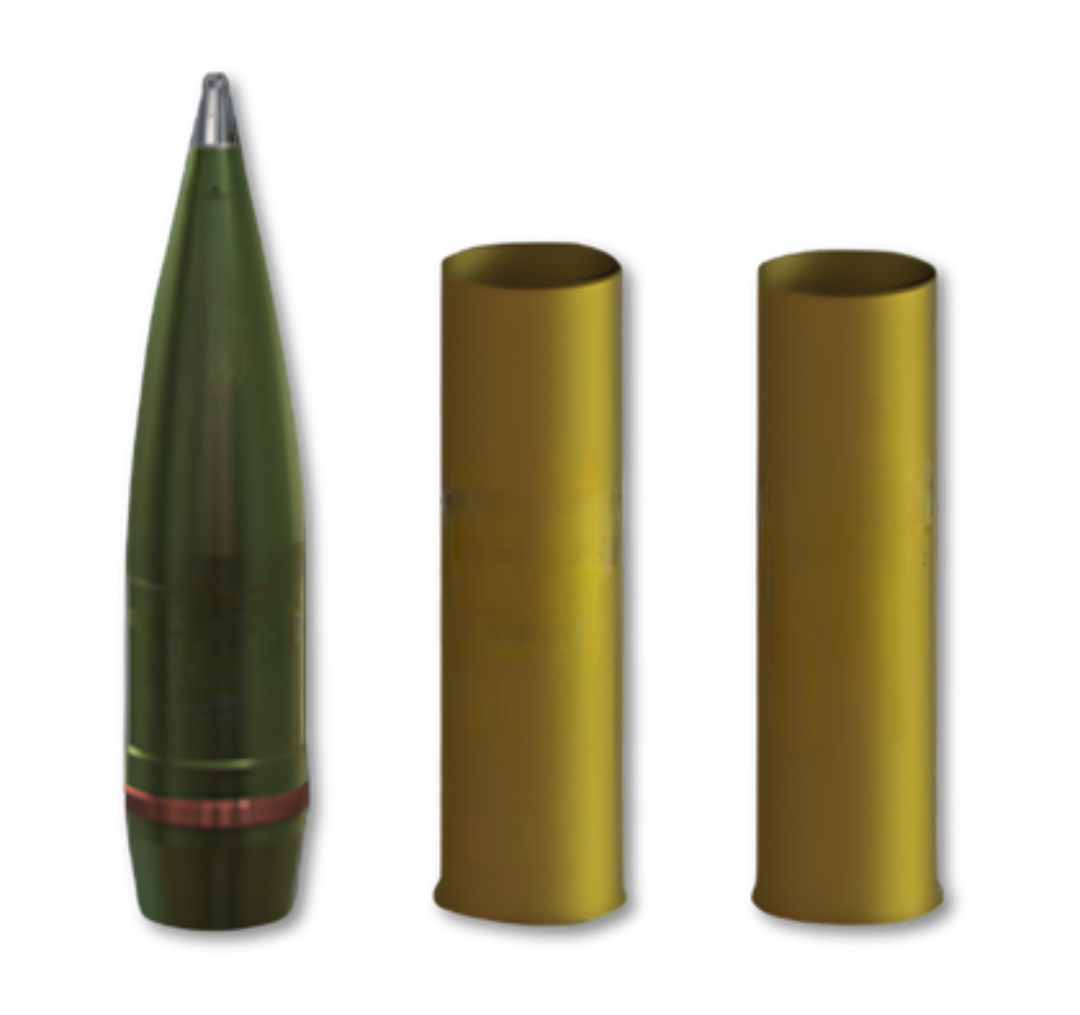

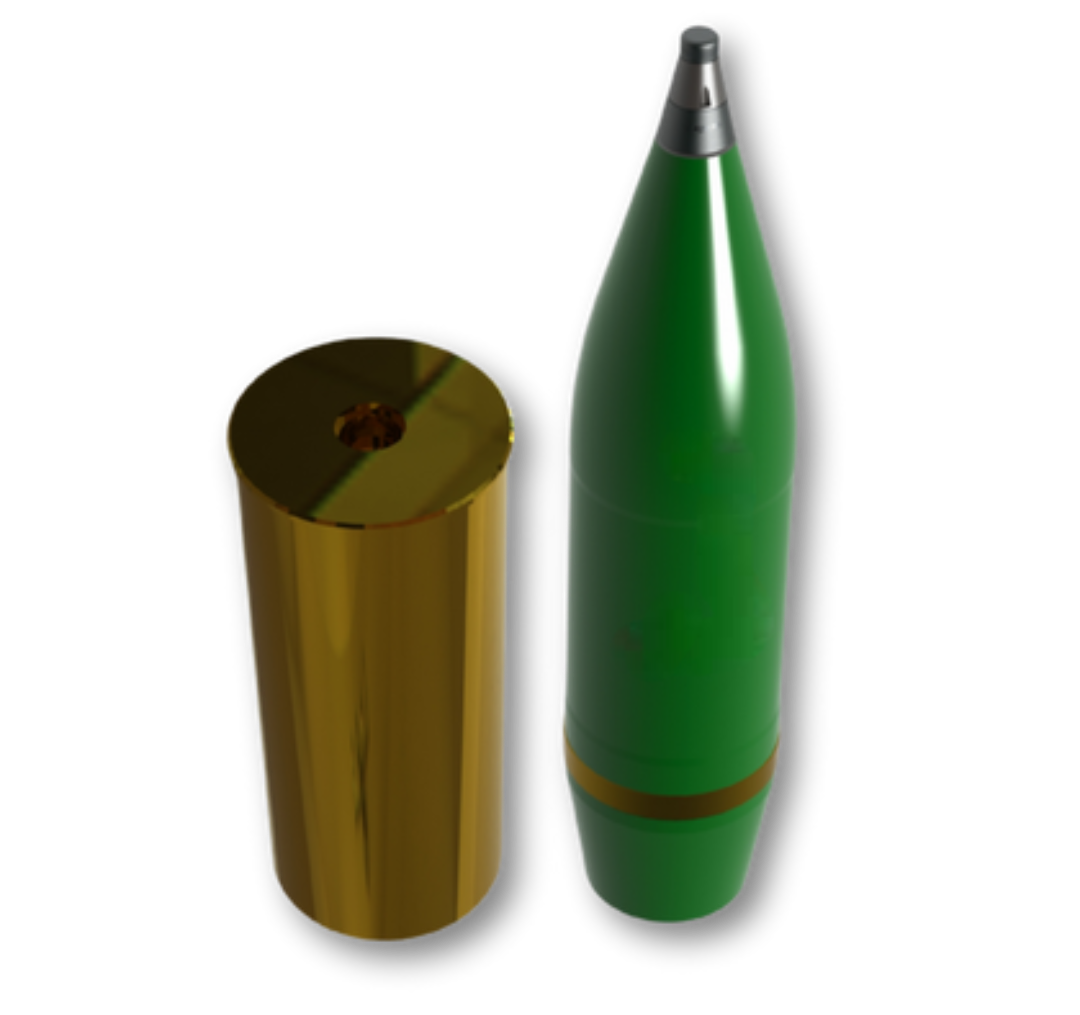

122mm HE
The round 122 mm is separate loaded, with a high-explosive projectile 462A1 and a full propellant charge M78. It Is intended for the destruction of personnel, light fortifications, unarmored and lightly armored vehicles. The projectile is filled with TNT explosive.
The full propellant charge M78 is in a steel cartridge case 122 mm M78 or a brass cartridge case 122 mm M19.
- Calibre (mm): 122
- Projectile muzzle velocity (m/s): 690
- Mean maximum pressure of powder gases (bar): < 2450
- Maximum range (m): 15000
- Projectile length, with fuze (mm): max. 565
- Projectile mass, tabular (kg): 21,76
- Explosive charge mass (kg): 3,6 for M78 / 4,06 for M19
- Cartridge case length (mm): 447
- Propellant charge mass (kg): 3,8
- Operating temperature (C): -30 to +50

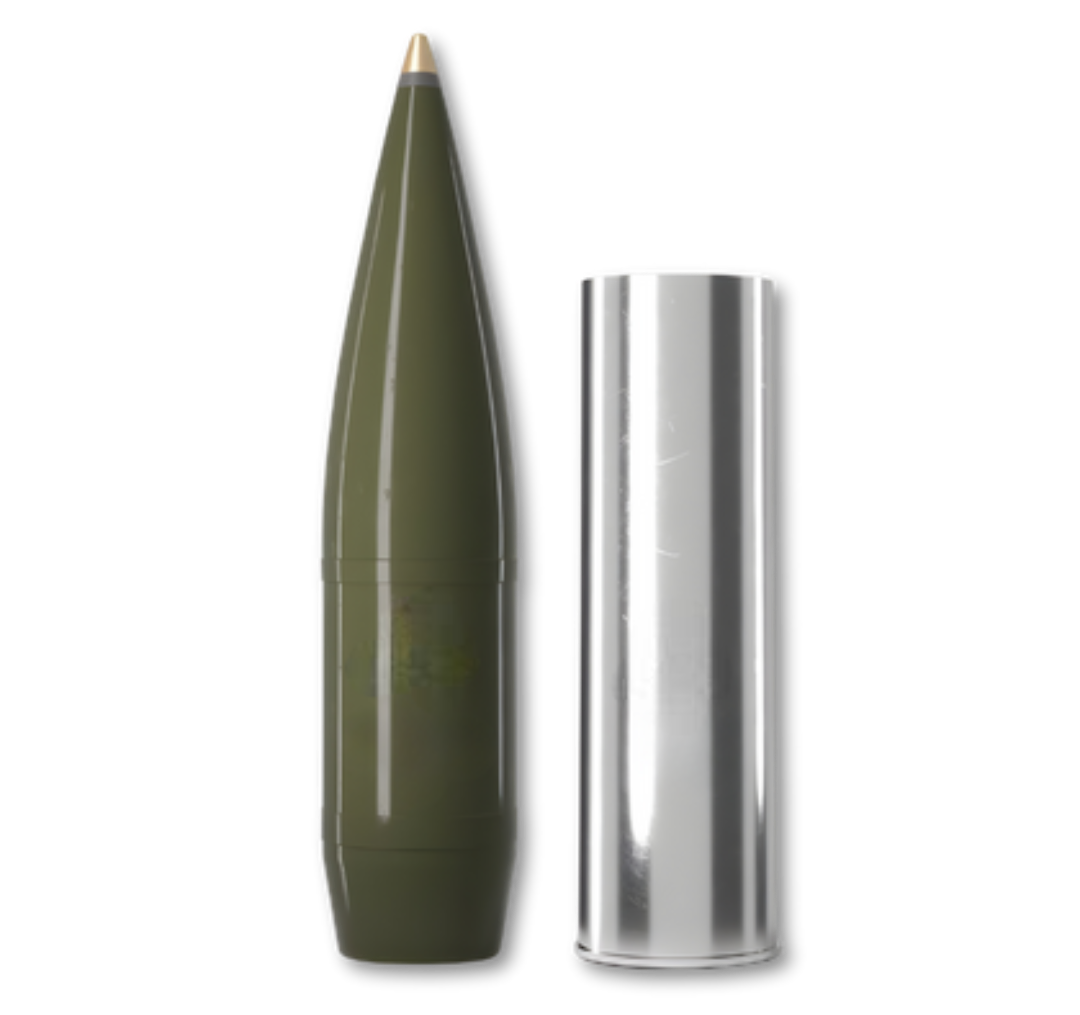

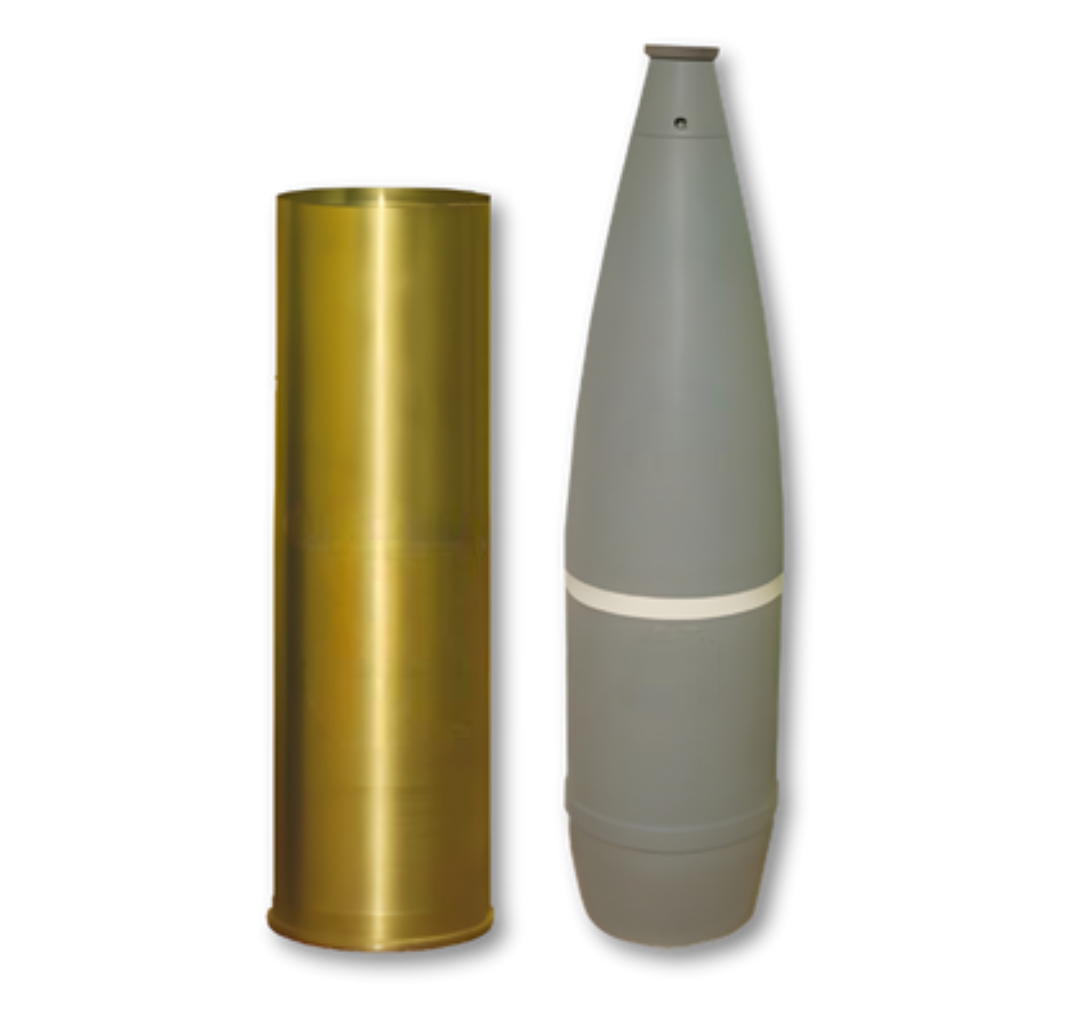

152mm HE
The round 152 mm is separately loaded, with a high-explosive projectile M88 and a full variable propellant charge M77. It is intended for the destruction of personnel, light fortifications, unarmored and lightly armored vehicles, etc.
The projectile is assembled with TNT. The full variable propellant charge M77 is activated by a gun primer КТ М71.
- Calibre (mm): 152
- Projectile muzzle velocity (m/s): 655
- Mean maximum pressure of powder gases (bar): < 2305
- Maximum range (m): 17400
- Projectile length, with fuze (mm): max. 710
- Projectile mass, tabular (kg): 43,56
- Explosive charge mass (kg): 5,94
- Cartridge case length (mm): max. 547.5
- Propellant charge mass (kg): 8,57
- Operating temperature (C): -30 to +50

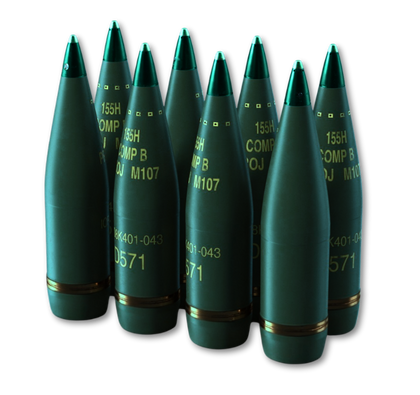

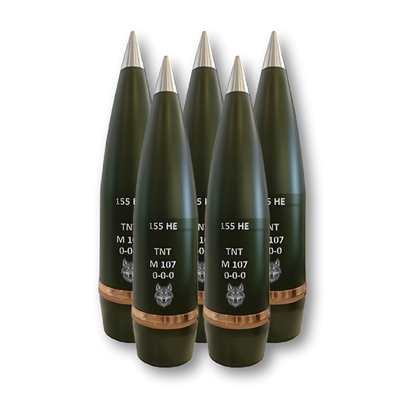

155mm HE
The round 155 mm is separate loaded, with a high-explosive projectile M107 and propellant charge M4A2. It is intended for the destruction of personnel, light fortifications, unarmored and lightly armored vehicles, etc.
The projectile is filled with TNT explosive. The propellant charge M4A2 is activated by a gun primer KT M82P2.
- Calibre (mm): 155
- Length without fuze (mm): 607
- Length with fuze (mm): max. 691
- Weight with fuze (kg): 43,2
- Type of rotating (guiding) ring: BRASS
- Weight of exp. (kg): 6,63 with TNT / 7,00 with Comp.B
- Explosive filling: TNT/ Comp.B
- Maximum allowed service pressure (MPa): 283
- Thread dimensions: 2" - 12UNS - 1A
- Operating temperature (C): -30 to +50
